Mobile cranes

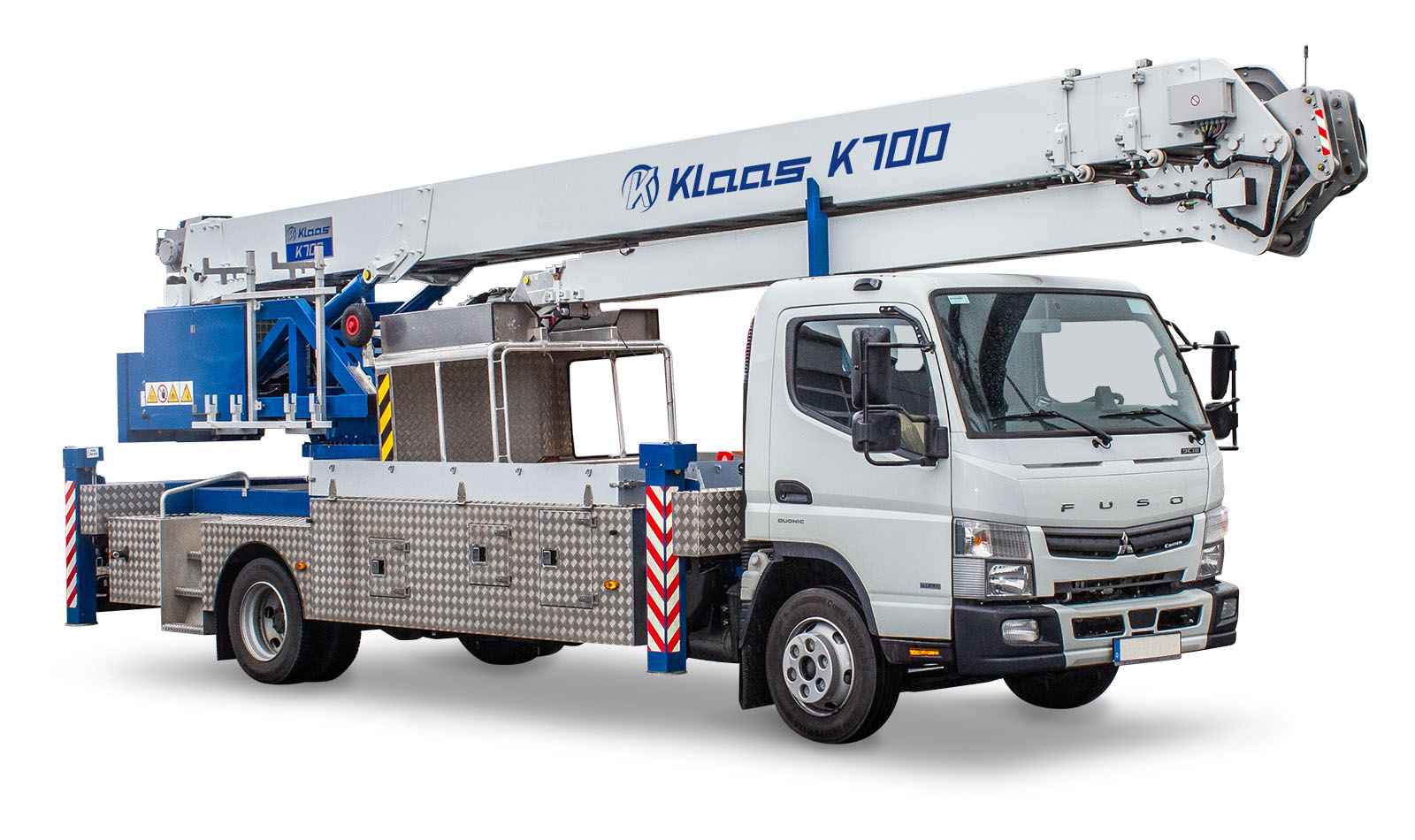

The K700, with a hook height of 34.5 m and a maximum load capacity of 3 tonnes, is equipped with many technical features that considerably simplify the daily work of roofers, carpenters and facade builders. Its compact dimensions and enormous lateral reach are impressive. For example, the K700 can transport loads of 250 kg to work areas 30 m away. Equipped with a double hydraulic, telescopic fly jip, it is the ideal crane in urban areas.

On request, the crane is also available with a battery-powered electric motor as K700 E. A large lithium battery with 22 kWh and an optimal consumption setting ensure self-sufficient crane operation for a complete working day. Even working with the platform is possible for a long time without recharging. The K700 E is charged via a standard 230 V socket. As a second drive option, the K700 E is equipped with a powerful auxiliary drive of the truck engine.


Equipment

Telescopic winch

  • quick telescoping under load thanks to patented Klaas rope technology
  • integrated electronic length measurement records current extension length of the mast and calculates maximum possible payload
  • low net weight of the ropes increases range of action and payload
  • low-maintenance and very easy to reach rope technology

Energy supply

  • protected routing of all moving electrical and hydraulic leads in or on the mast
  • no hose or cable reels on the mast
  • low-maintenance hydraulic pipework made of galvanised steel used in the substructure, meaning there is no need to change hydraulic hoses

Double derricking cylinders

  • boom raised with low torsion thanks to two luffing cylinders
  • double safety due to two cylinders
  • better absorption of lateral guide forces, making the boom more stable and still
Video: Double derricking cylinders

Drive concept

  • separate powerful diesel engine for the crane operation
  • low fuel consumption meaning enormous cost saving and reduction of environmental impact
  • the truck engine is not put under strain by the crane operation
  • electronic tank monitoring on the crane and display via the remote control unit

Twin luffing cylinders

  • folding jib joint is milled "from the solid" and thus enables higher load bearing capacity
  • electronic monitoring in the joint guarantees optimal lifting of loads in any angular position
  • twin luffing cylinders for even more security and protection against lateral forces
Video: Twin luffing cylinders

Radio remote control

  • precise starting thanks to sensitive joysticks
  • large display provides a clear indication of all the crane’s key operating statuses
  • power supplied by standard batteries or cable
  • equipment with memory function possible
  • this learns two target points (e.g. where material is on the ground and unloading point on the roof), during which the crane moves in safe hold-to-run mode

Automatic levelling

  • the crane is completely set up quickly and easily using the radio remote control
  • each individual support infinitely extends laterally
  • automatic levelling of the support cylinders for optimal set-up even on uneven surfaces
  • constant pressure monitoring reacts to changing outside conditions

Endlessly rotatable

  • high-quality turntable from German brand manufacture
  • well thought-out rotary guide enables endless rotation of the upper carriage in both directions
Video: Endlessly rotatable

Boom system

  • extremely strong and weather-resistant aluminium special alloy with low net weight
  • no strength loss in the welding seam due to stir welding process, joints are as strong as the solid material
  • typical Klaas hole pattern ensures smaller wind-exposed areas, low net weight and high dent resistance

Crane control system

  • complex control system according to EN 280 and EN 13000
  • ultra-modern safety PLC for the crane operation
  • CAN BUS control block for particularly sensitive and accurate work
  • soft start/stop for low-vibration work
  • extension with additional remote control possible

Full panelling

  • spacious, lockable storage compartments
  • safe storage of tools and accessories
  • large storage space on the crane
  • the aluminium chequer plate design gives the crane a high-quality and clean look

H-Outriggers

  • fully hydraulic support in conjunction with the ASC support monitoring system enables infinitely variable support widths, also in the direction of the range of action
  • no fixed increments that restrict the operator
  • l-shaped support ensure best possible safety against overturning
  • support without underpinning thanks to long, vertical cylinder

Double hydraulic, telescopic fly jib

  • hydraulic telescoping of the first and second folding top elements via the radio remote control
  • simultaneous extension of both drawers ensures optimum load distribution
  • utilization of the folding tip even in narrow body situations thanks to "extending in the air"
  • hydraulic telescoping also in stage operation
Video: double hydraulic, telescopic fly jib

Personal safety mode

  • personal safety mode in accordance with BG guidelines
  • for working at great heights without stationary securing options such as scaffolding or safety eyes
  • securing of persons by crane boom allows free working at exposed places

Optional equipment

Battery-powered electric motor (K700 E)

  • large lead battery with 24 kWh enables self-sufficient crane operation over a long period of time
  • charging of energy storage via 230-volt socket
  • working platform operation possible via battery
  • second drive option: auxiliary drive of the truck engine


XL Radio remote control

  • precise starting thanks to sensitive joysticks
  • memory function learns two target points (e.g. where material is on the ground and unloading point on the roof), during which the crane moves in safe hold-to-run mode
  • second display ensures all the crane’s key operating statuses are clearly displayed, such as angle of inclination and rotation, max. lifting capacity, hoisting cable speed
  • power supplied by standard batteries or cable

Hybrid drive

  • optional drive by diesel engine or environmentally friendly electric motor
  • electric motor can be removed without tools for transport on the road

Mounting-/glass hook

  • assembly hook enables precise material transport
  • application area: e. g. glass mounting with vacuum lifter
  • flexibility in length and tilt angle facilitates difficult installations

Accessory fix system

  • accessories are securely stored and immediately within reach
  • no cumbersome lashing necessary
  • custom-fit holders ensure safety on the road
  • crane equipped with fitting brackets

Working platform

  • The crane can be converted to a fully-fledged working platform in less than 5 minutes.
  • with 230 V socket and standardised lashing points for securing persons
  • The working platform can be swivelled left and right by 45° to either side.

Technical specifications

Hook load (stand./opt.)1.6 /3.0 t
Hook height34.5 m
Total weight1≥ 7.5 t
Boom length36.50 m
Outrigger width (min.)3.03 m
Outrigger width (max.)5.29 m
Winch capacity1,600 kg
Boom (1,600 - 350 kg)5.00 - 11.65 m
Extension 3 (250 kg)13.90 m

Working range

LoadRangeHeight
1,600 kg6.00 m23.00 m
1,000 kg14.00 m17.50 m
750 kg17.00 m13.50 m
500 kg18.00 m23.00 m
350 kg24.00 m14.00 m
250 kg30.00 m10.00 m
3t-Funktion
3,000 kg5.00 m8.00 m
2,000 kg6.50 m5.00 m

Working range diagrams





























































































































































































Subject to technical changes. All dimensions are approximate. The right is reserved to alter the functions and performance. The information reflects the appliance performance at the time of publication.1 dependent on truck type
