Elevating work platforms

The Rudi21 is an elevating work platform which is extremely flexible due to an additional cage arm and can therefore be used for countless roof and façade works. The 3.5-tonne platform shows its full strength especially when it comes to difficult-to-access locations such as the backs of buildings or sloping roofs, as well as when space is at a premium. Thanks to simple handling and sophisticated technology, the Rudi21 is quick and easy to set up. The user-friendly basket control stand is intuitively easy to operate, its joysticks work extremely sensitively and enable precise control.



Array
(
    [0] => 53836
    [1] => 69009
    [2] => 68815
    [3] => 68809
    [4] => 68804
    [5] => 64866
    [6] => 64943
    [7] => 53854
    [8] => 55689
    [9] => 53833
    [10] => 55671
    [11] => 55685
    [12] => 55378
    [13] => 54912
    [14] => 54143
    [15] => 53851
    [16] => 53846
)

Product sheet Rudi21








$countHauptfotos:Array
(
    [0] => 65248
)
































Equipment

















TSR Boom system


  • extremely strong and weather-resistant aluminium special alloy with low net weight
    •
  • no strength loss in the welding seam due to stir welding process, joints are as strong as the solid material
    •
  • boom is endlessly rotatable
    •
  • Quick telescoping under load thanks to patented Klaas rope technology
    •
  • Extremely low-maintenance and durable rope technology
    •















V-outriggers


  • fully hydraulic outriggers in conjunction with ASC support monitoring system enables infinitely variable outrigger widths, even in the direction of the range of action
    •
  • no fixed increments that restrict the operator
    •
  • optimal user protection thanks to constant monitoring of the stability
    •
  • Integral hydraulic lines to outrigger beams, thus protection against damage from falling objects.
    •















Automatic levelling


  • quick and easy set-up and dismounting via the control console
    •
  • fully variable outrigger extension
    •
  • self levelling outrigger set-up even on uneven surface
    •
  • constant pressure monitoring reacts to changing outside conditions
    •















Telescoping winch


  • quick telescoping under load thanks to patented Klaas rope technology
    •
  • integrated electronic length measurement records current extension length of the mast and calculates maximum possible payload
    •
  • low net weight of the ropes increases range of action and payload
    •
  • low-maintenance and very easy to reach rope technology
    •















Energy supply


  • protected routing of all moving electrical and hydraulic leads in or on the mast
    •
  • no hose or cable reels on the mast
    •
  • low-maintenance hydraulic pipework made of galvanised steel used in the substructure, meaning there is no need to change hydraulic hoses
    •
Drive concept


  • platform operated by powerful truck engine with auxiliary drive (PTO)
    •
  • modern controller and electrical components enable standstill whilst set up for up to four hours
    •
  • electronic tank monitoring via control console
    •















Full panelling


  • completely closed full panelling made of anodised aluminium smooth plate
    •
  • lockable doors and hoods ensure inaccessibility to various components
    •
  • high-quality design
    •
  • easier to clean the vehicle
    •

Endless rotatable boom


  • upper structure with the boom can be rotated 360°
    •















Basket control station


  • high-quality basket control station in terms of ergonomics and feel, optimally adapted to the operator’s needs
    •
  • easy to operate thanks to direct selection of important functions and clear presentation
    •
  • extremely sensitive joysticks for precisely controlling the platform
    •
  • informative, large colour display clearly showing all key platform operating statuses
    •
  • with integrated plastic protective cover
    •















Platform control


  • ultra-modern safety control system (PLC) for operating the platform according to DIN EN 280
    •
  • modern CAN BUS control block for particularly sensitive and accurate work
    •
  • soft start/stop for low-vibration work
    •
  • optional control of all key basket functions via second cable remote control from below
    •
  • Freely selectable angle of rotation presetting
    •
  • Freely selectable throat and height presetting
    •





Technical specifications
Working height21.0 m
Range to the rear (250 kg)15.0 m
Range to the side (250 kg)14.0 m
Basket capacity250 kg
Total weight13.5 t
Swivel rangeendlessly rotatable
Work basket angle of rotation180 °
Large work basket1,40 x 0,70 m
Outrigger width (min.)2.40 m
Outrigger width (max., at the front)4.50 m
Outrigger width (max., at the back)4.25 m
Clearance height3.00 m

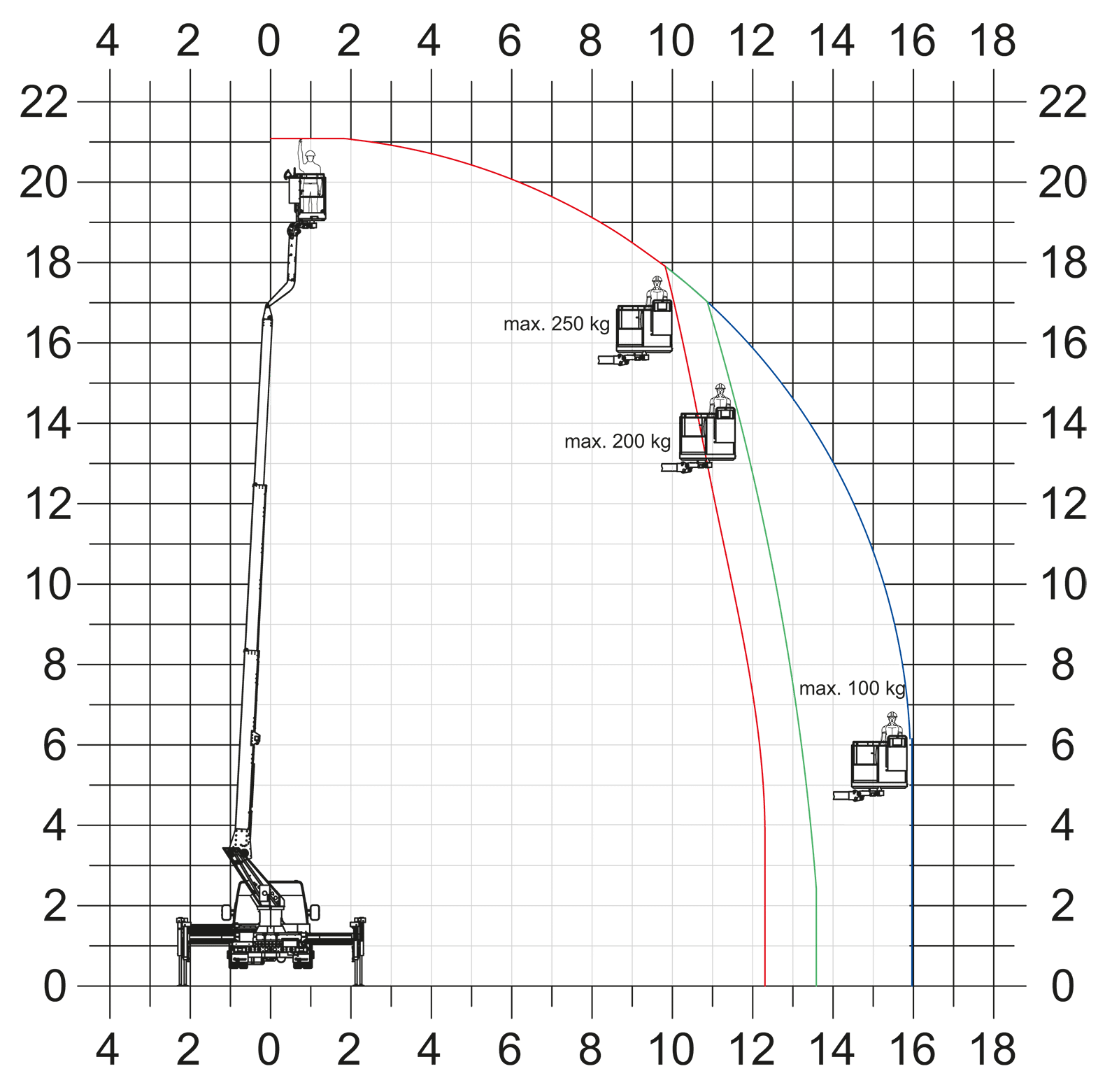

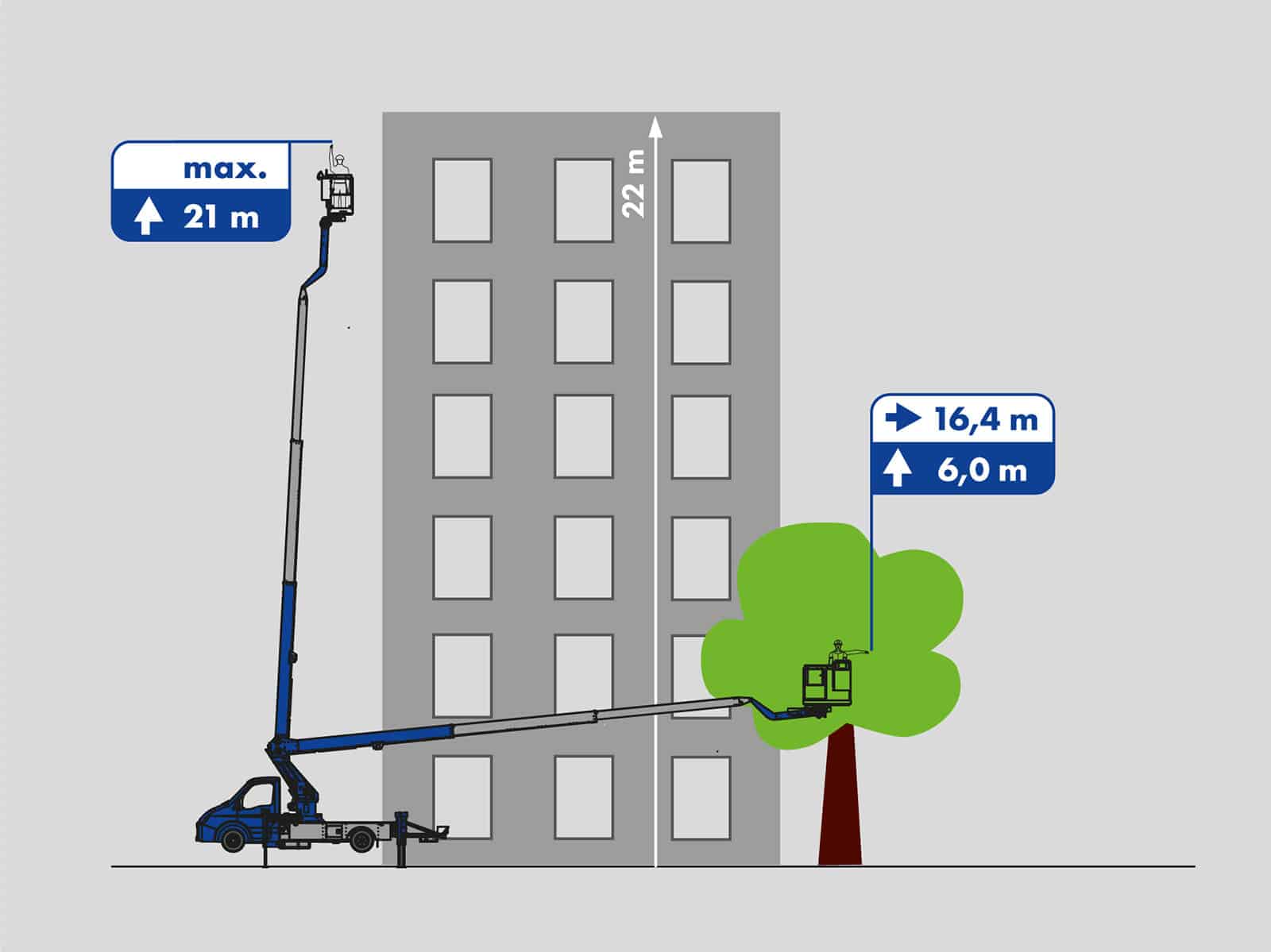

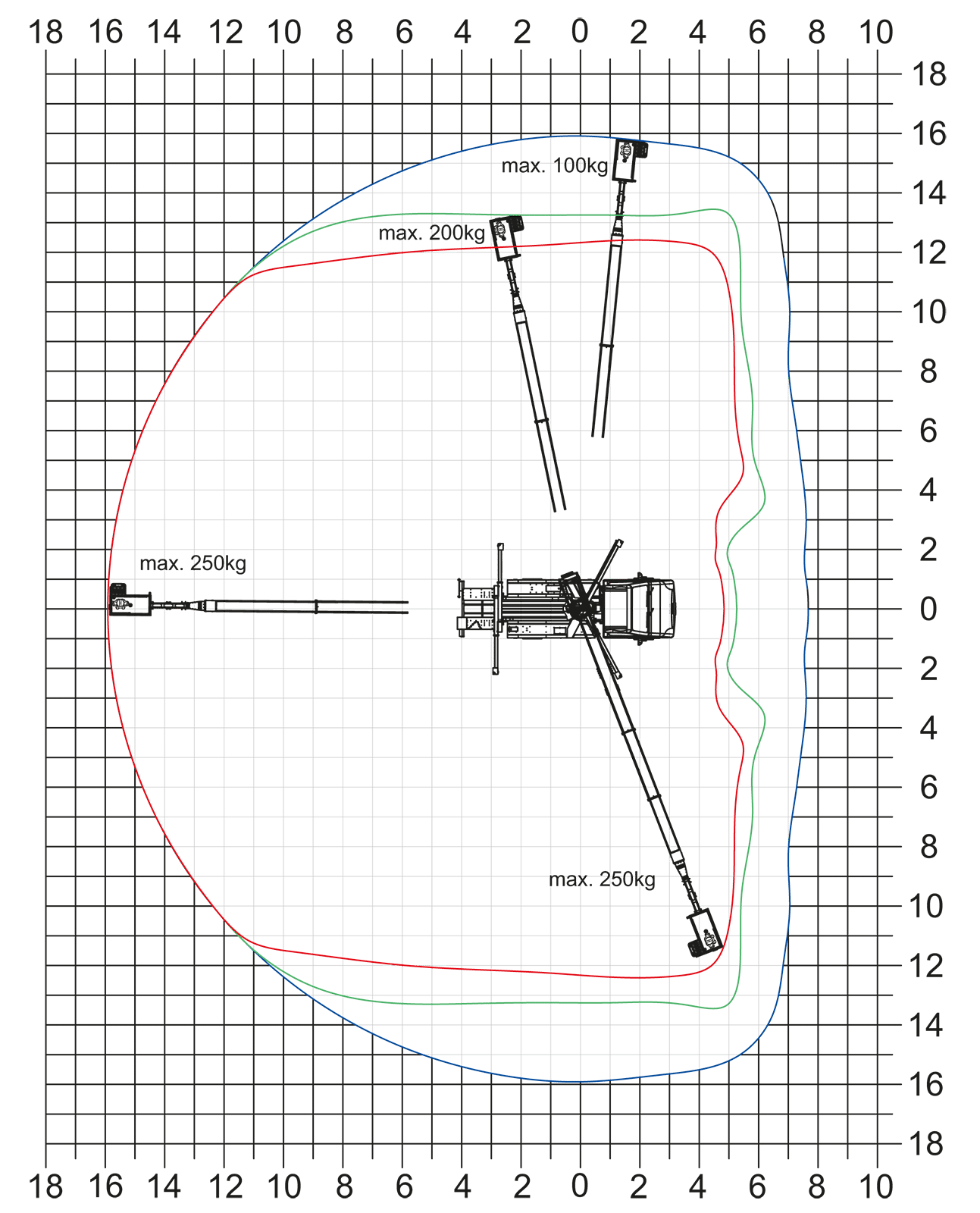

Working range diagrams








Work diagramm




Subject to technical changes. All dimensions are approximate. The right is reserved to alter the functions and performance. The information reflects the appliance performance at the time of publication.1 dependent on truck type
