Transport of persons

All Klaas cranes can be fitted with a work basket for one or two persons, which meets the strictest safety standards. Alternatively, almost any crane can be converted into a fully-fledged working platform within minutes and without tools. There is a choice of different platforms for one to two or up to three persons. They can be operated precisely and safely via remote control, levelling is done automatically by the platform control system. Each Klaas platform has standard lashing points that comply with standards and fulfil EN 280.



Accessories brochure

  • Working platform HA 2/200

    • made of aluminium
    • type tested by TÜV Süddeutschland
    • for max. two persons
    • can be pivoted 45° to the left and right
    • design depending on crane type
    Payload200 kg
    Net weight83.00 kg
    Stand space1,100 x 630 mm
    Item numberdepending on crane type

  • Working platform HA 3/300

    • made of aluminium
    • type tested by: DEKRA EXAM GmbH
    • for max. 3 persons
    • 30° swivelling to the right and left
    • design depending on crane type
    Payload300 kg
    Net weight170 kg
    Stand space2,000 x 700 mm
    Item numberdepending on crane type

  • Working platform HA 3/500

    • made of aluminium
    • for max. three persons
    • can be pivoted 45° to the left and right
    • design depending on crane type
    Payload500 kg
    Net weight150 kg
    Stand space2,200 x 630 mm
    Item numberdepending on crane type

  • Working platform HA 2/450°

    • made of aluminium
    • for max. two persons
    • can be pivoted 225° to the left and right
    • design depending on crane type
    Payload200 kg
    Net weight150 kg
    Stand space1,100 x 630 mm
    Item numberdepending on crane type

  • Working platform HA 3/450°

    • made of aluminium
    • for max. three persons
    • can be pivoted 30° to the left and right
    • design depending on crane type
    Payload300 kg
    Net weight0.00 kg
    Stand space2,000 x 700 mm
    Item number

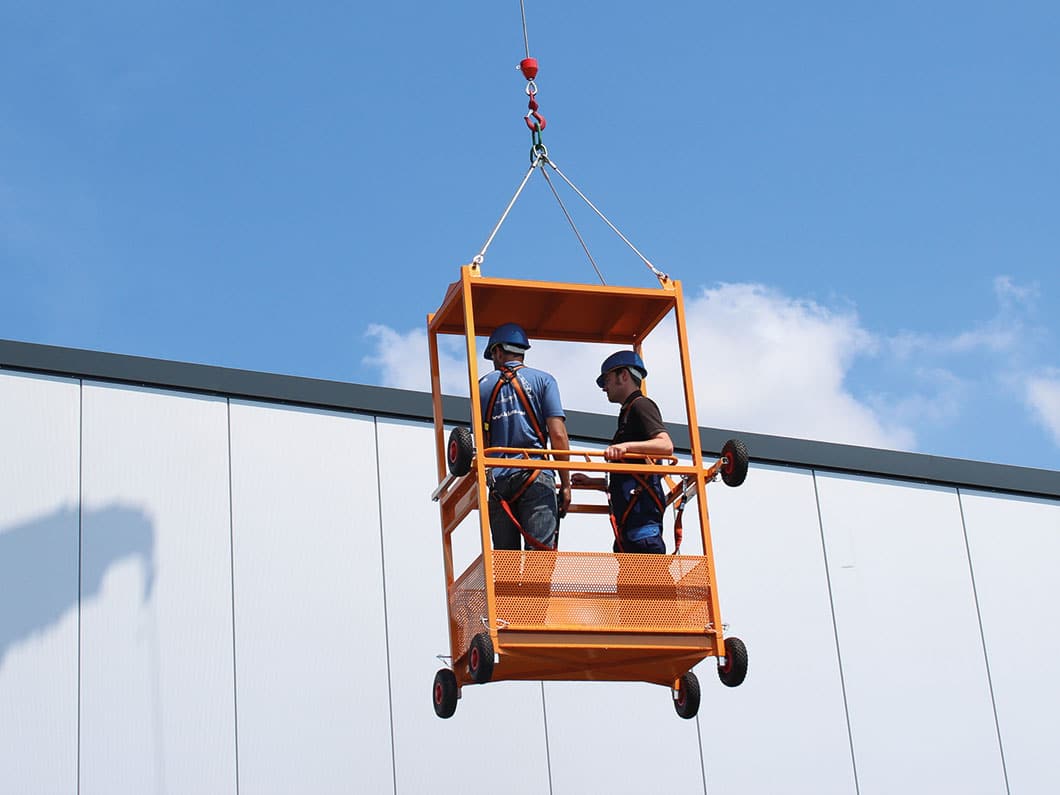

  • Working basket 1P/120

    • made of aluminium
    • approved according to trade association safety rules ZH 1/461
    Payload240 kg
    Net weight65.00 kg
    Stand space1,020 x 630 mm
    Item number01.02.00146

  • Working basket 2P/240

    • made of aluminium
    • approved according to trade association safety rules ZH 1/461
    Item number01.02.00147

  • Personal safety PPE set

    • 2-piece fall protection kit consisting of safety harness and safety line with connecting elements
    • incl. plastic case for storage
    Item number01.08.00013

  • PPE fall arrest set

    • 3-piece set consisting of fall arrester, two carabiners and anchor sling
    • incl. plastic case for storage
    Item number01.02.00271
Subject to technical changes. All dimensions are approximate. The right is reserved to alter the functions and performance. The information reflects the appliance performance at the time of publication.
